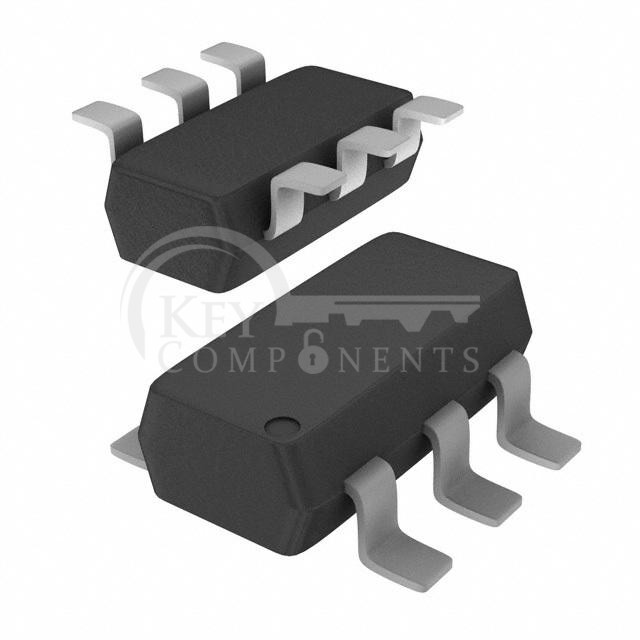

NL17SZ175DBVT1G
| Manufacturer Part | NL17SZ175DBVT1G |
|---|---|
| Manufacturer | onsemi |
| Description | IC FF D-TYPE SNGL 1BIT SC74 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | - |
| Type: | D-Type |
| Output Type: | - |
| Number of Elements: | 1 |
| Number of Bits per Element: | 1 |
| Clock Frequency: | 175 MHz |
| Max Propagation Delay @ V, Max CL: | 4ns @ 5V, 50pF |
| Trigger Type: | Positive Edge |
| Current - Output High, Low: | 32mA, 32mA |
| Voltage - Supply: | 1.65V ~ 5.5V |
| Current - Quiescent (Iq): | - |
| Input Capacitance: | 2.5 pF |
| Operating Temperature: | -55°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | SC-74 |
| Package / Case: | SC-74, SOT-457 |
