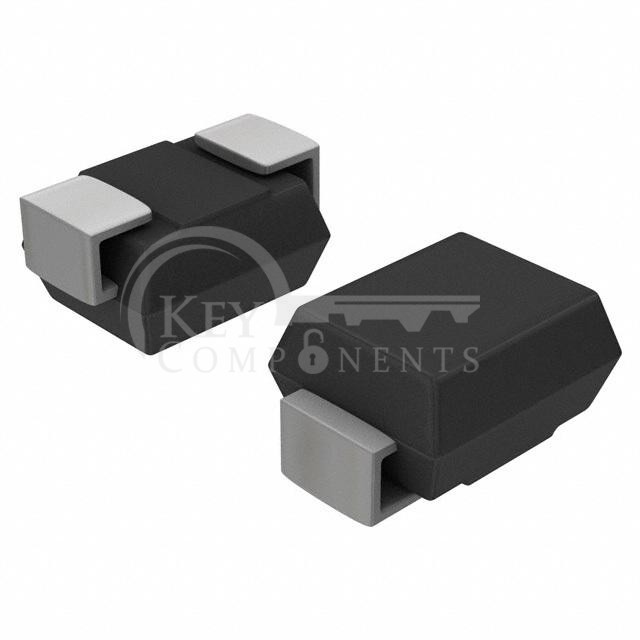

NP3100SBT3G
| Manufacturer Part | NP3100SBT3G |
|---|---|
| Manufacturer | onsemi |
| Description | THYRISTOR 275V 80A DO214AA |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Breakover: | 350V |
| Voltage - Off State: | 275V |
| Voltage - On State: | 4 V |
| Current - Peak Pulse (8/20µs): | - |
| Current - Peak Pulse (10/1000µs): | 80 A |
| Current - Hold (Ih): | 150 mA |
| Number of Elements: | 1 |
| Capacitance: | 47pF |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AA, SMB |
