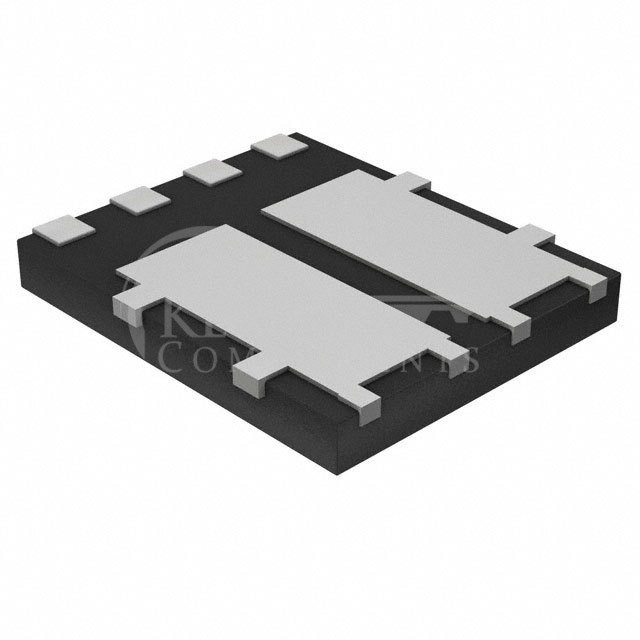

NTMFD5C674NLT1G

Manufacturer Part	NTMFD5C674NLT1G
Manufacturer	onsemi
Description	T6 60V LL S08FL DS
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	11A (Ta), 42A (Tc)
Rds On (Max) @ Id, Vgs:	14.4mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 25µA
Gate Charge (Qg) (Max) @ Vgs:	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	640pF @ 25V
Power - Max:	3W (Ta), 37W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerTDFN
Supplier Device Package:	8-DFN (5x6) Dual Flag (SO8FL-Dual)
