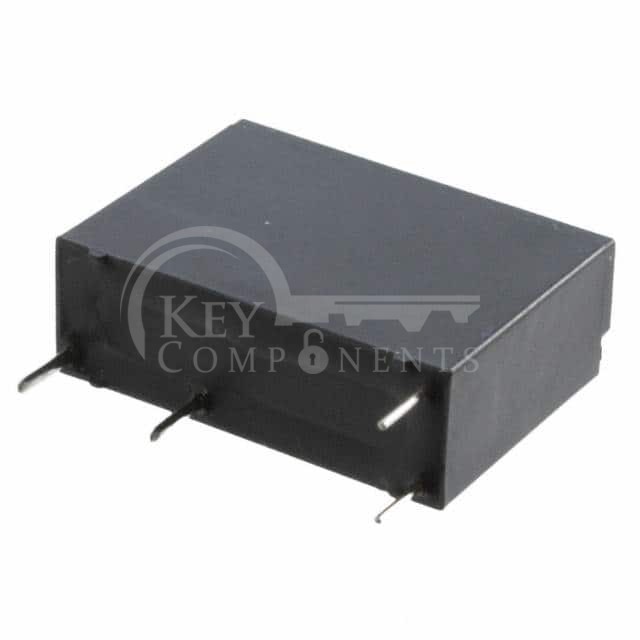

ALDP105W
| Manufacturer Part | ALDP105W |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Description | RELAY GEN PURPOSE SPST 5A 5V |
| Category | Relays |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Mounting Type: | Through Hole |
| Coil Voltage: | 5VDC |
| Contact Form: | SPST-NO (1 Form A) |
| Contact Rating (Current): | 5 A |
| Switching Voltage: | 277VAC - Max |
| Coil Current: | 40 mA |
| Coil Type: | Non Latching |
| Features: | - |
| Termination Style: | PC Pin |
| Seal Rating: | - |
| Coil Insulation: | - |
| Must Operate Voltage: | 3.75 VDC |
| Must Release Voltage: | 0.25 VDC |
| Operate Time: | 10 ms |
| Release Time: | 10 ms |
| Operating Temperature: | -40°C ~ 85°C |
| Contact Material: | Silver Nickel (AgNi) |
| Relay Type: | General Purpose |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
