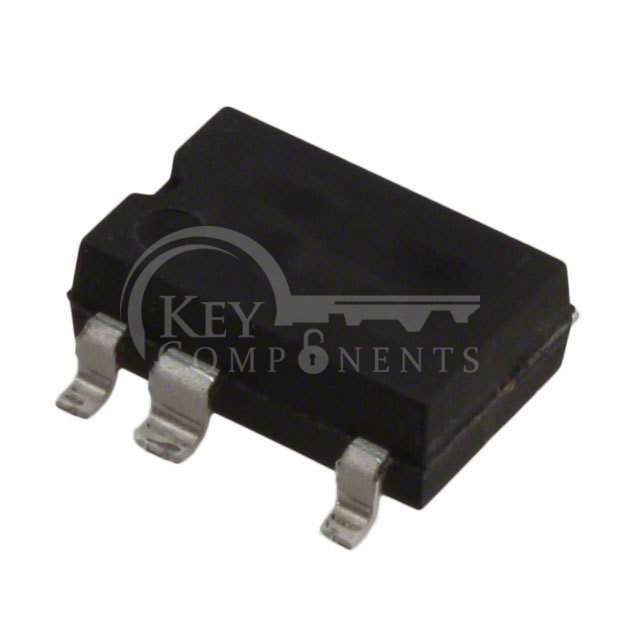

TNY266G

Manufacturer Part	TNY266G
Manufacturer	Power Integrations
Description	IC OFFLINE SWITCH FLYBACK 8SMD
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	700V
Topology:	Flyback
Voltage - Start Up:	-
Voltage - Supply (Vcc/Vdd):	-
Duty Cycle:	65%
Frequency - Switching:	132kHz
Power (Watts):	15 W
Fault Protection:	Current Limiting, Open Loop, Over Temperature, Short Circuit
Control Features:	EN
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	8-SMD (7 Leads), Gull Wing
Supplier Device Package:	SMD-8B
Mounting Type:	Surface Mount
