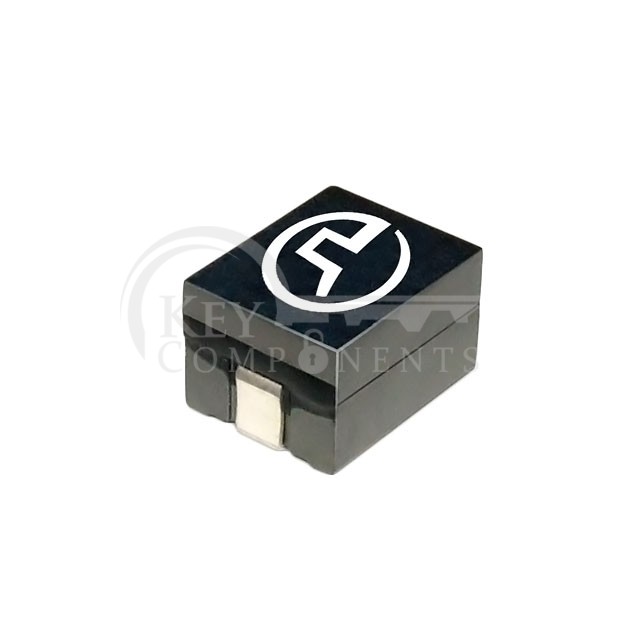

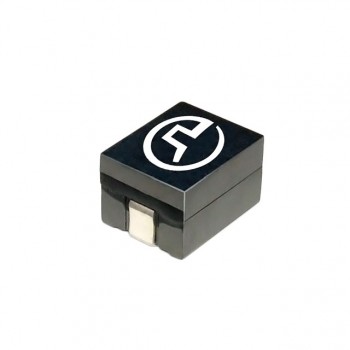

PA2202.231NL
| Manufacturer Part | PA2202.231NL |
|---|---|
| Manufacturer | Pulse Electronics Power |
| Description | FIXED IND 230NH 36A 0.48MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | - |
| Material - Core: | - |
| Inductance: | 230 nH |
| Tolerance: | ±15% |
| Current Rating (Amps): | 36 A |
| Current - Saturation (Isat): | 47A |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 0.48mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 130°C |
| Inductance Frequency - Test: | - |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.476" L x 0.394" W (12.10mm x 10.00mm) |
| Height - Seated (Max): | 0.236" (6.00mm) |
