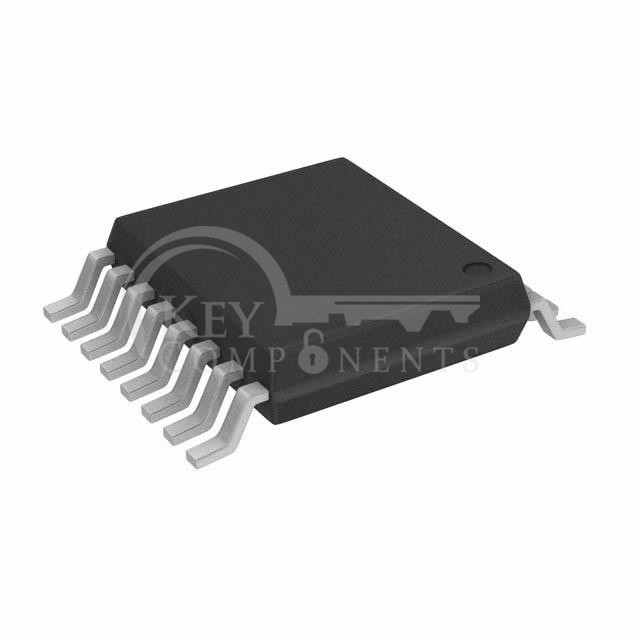

DG412DVZ-T

DG412DVZ-T

Manufacturer Part DG412DVZ-T
Manufacturer Renesas Electronics America Inc
Description IC SWITCH QUAD SPST 16TSSOP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Circuit:SPST - NO
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:4
On-State Resistance (Max):35Ohm
Channel-to-Channel Matching (ΔRon):-
Voltage - Supply, Single (V+):5V ~ 44V
Voltage - Supply, Dual (V±):±5V ~ 20V
Switch Time (Ton, Toff) (Max):175ns, 145ns
-3db Bandwidth:-
Charge Injection:5pC
Channel Capacitance (CS(off), CD(off)):9pF, 9pF
Current - Leakage (IS(off)) (Max):100pA
Crosstalk:-85dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:16-TSSOP
