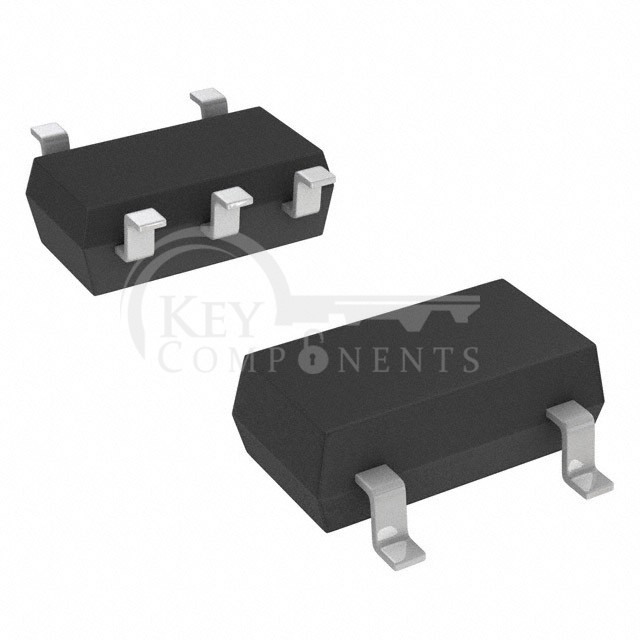

RT9742DGJ5

RT9742DGJ5

Manufacturer Part RT9742DGJ5
Manufacturer Richtek USA Inc.
Description IC PWR SWITCH N-CHAN 1:1 SOT23-5
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Type:USB Switch
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:2.7V ~ 6V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):2A
Rds On (Typ):70mOhm
Input Type:Non-Inverting
Features:Load Discharge, Status Flag
Fault Protection:Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:TSOT-23-5
Package / Case:SOT-23-5 Thin, TSOT-23-5
