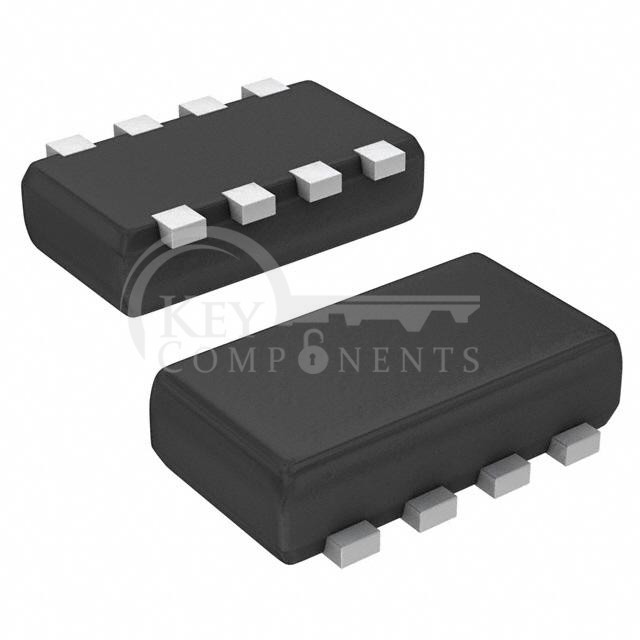

TT8J21TR

TT8J21TR

Manufacturer Part TT8J21TR
Manufacturer Rohm Semiconductor
Description MOSFET 2P-CH 20V 2.5A TSST8
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:2 P-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:2.5A
Rds On (Max) @ Id, Vgs:68mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id:1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:12nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:1270pF @ 10V
Power - Max:650mW
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-SMD, Flat Lead
Supplier Device Package:8-TSST
