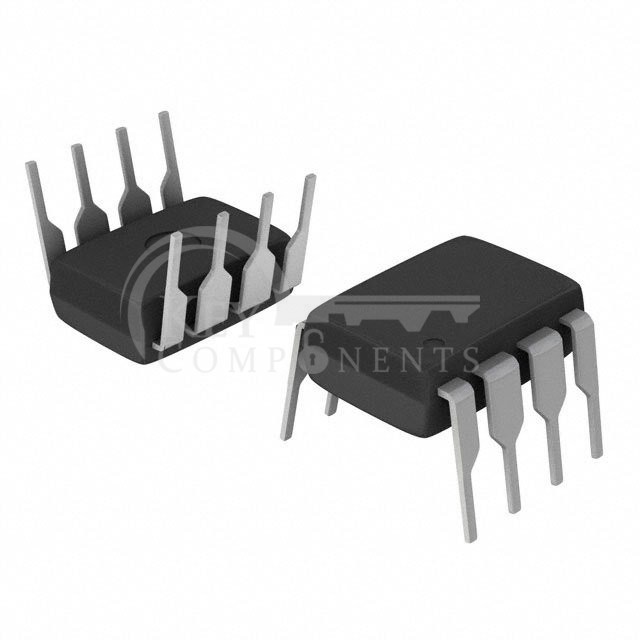

STR3A153

Manufacturer Part	STR3A153
Manufacturer	Sanken
Description	IC OFFLINE SWITCH FLYBACK 8DIP
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Not For New Designs
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	650V
Topology:	Flyback
Voltage - Start Up:	15.3 V
Voltage - Supply (Vcc/Vdd):	8.1V ~ 32V
Duty Cycle:	74%
Frequency - Switching:	67kHz
Power (Watts):	53 W
Fault Protection:	Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features:	-
Operating Temperature:	-40°C ~ 115°C (TA)
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
Mounting Type:	Through Hole
