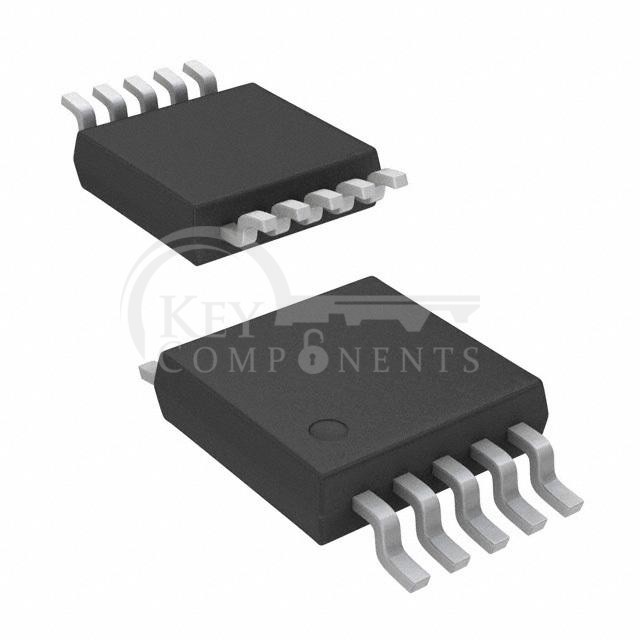

RCLAMP0514M.TBT
| Manufacturer Part | RCLAMP0514M.TBT |
|---|---|
| Manufacturer | Semtech Corporation |
| Description | TVS DIODE 5VWM 20VC 10MSOP |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Steering (Rail to Rail) |
| Unidirectional Channels: | 4 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 5V (Max) |
| Voltage - Breakdown (Min): | 6V |
| Voltage - Clamping (Max) @ Ipp: | 20V |
| Current - Peak Pulse (10/1000µs): | 5A (8/20µs) |
| Power - Peak Pulse: | 125W |
| Power Line Protection: | Yes |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 1.4pF @ 1MHz |
| Operating Temperature: | -55°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package: | 10-MSOP |
