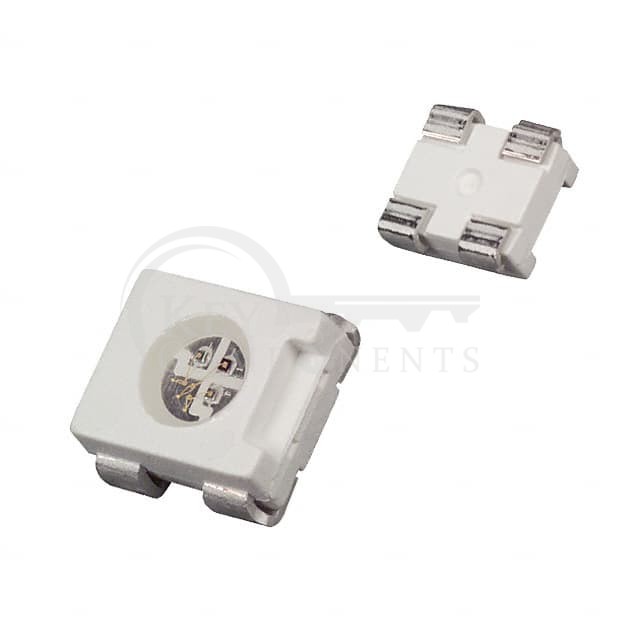

GM5WA02200A

GM5WA02200A

Manufacturer Part GM5WA02200A
Manufacturer Sharp Microelectronics
Description LED RGB CLEAR CHIP SMD
Category Optoelectronics
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Color:Red, Green, Blue (RGB)
Configuration:Common Anode
Lens Color:Colorless
Lens Transparency:Clear
Millicandela Rating:300mcd Red, 500mcd Green, 150mcd Blue
Lens Style:Round with Flat Top
Lens Size:3.20mm Dia
Voltage - Forward (Vf) (Typ):2V Red, 4.5V Green, 4.5V Blue
Current - Test:40mA Red, 40mA Green, 40mA Blue
Viewing Angle:-
Mounting Type:Surface Mount
Wavelength - Dominant:635nm Red, 525nm Green, 470nm Blue
Wavelength - Peak:647nm Red, 518nm Green, 468nm Blue
Features:-
Package / Case:4-SMD, J-Lead
Supplier Device Package:Chip LED
Size / Dimension:6.00mm L x 5.00mm W
Height (Max):2.40mm
