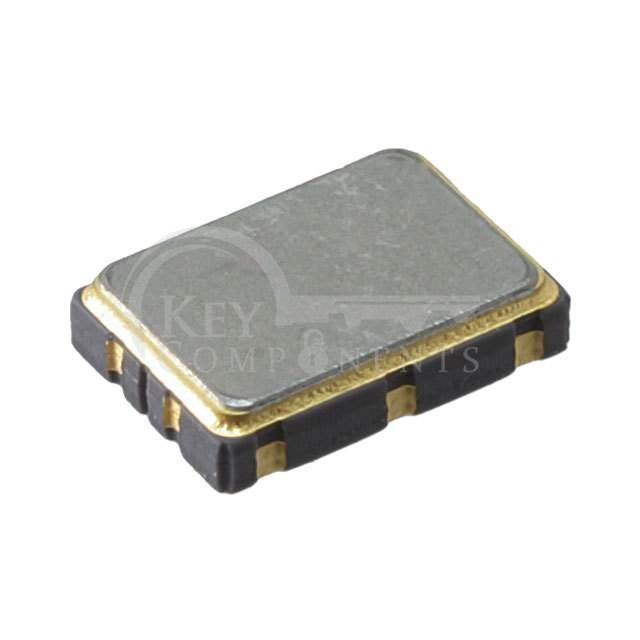

510DBA100M000AAG

510DBA100M000AAG

Manufacturer Part 510DBA100M000AAG
Manufacturer Skyworks Solutions Inc.
Description XTAL OSC XO 100.0000MHZ HCSL SMD
Category Crystals, Oscillators, Resonators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:100 MHz
Function:Enable/Disable
Output:HCSL
Voltage - Supply:3.3V
Frequency Stability:±25ppm
Absolute Pull Range (APR):-
Operating Temperature:-40°C ~ 85°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):44mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:6-SMD, No Lead
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):0.071" (1.80mm)
