L6569

L6569

Manufacturer Part L6569
Manufacturer STMicroelectronics

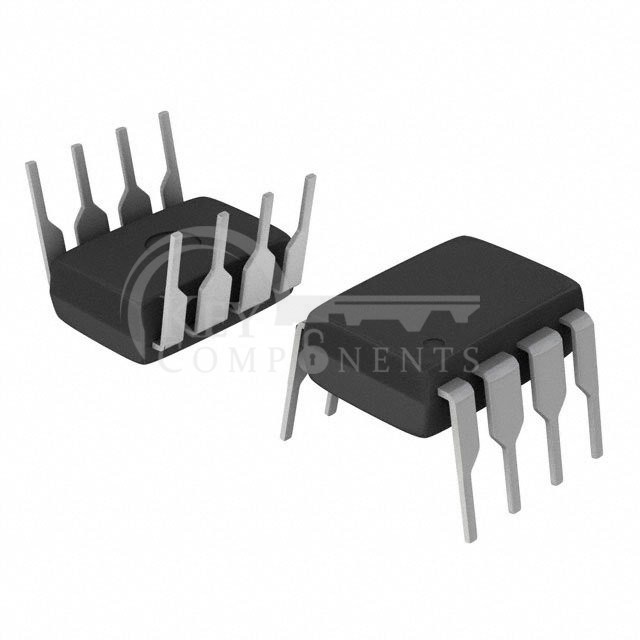

Description IC GATE DRVR HALF-BRIDG 8MINIDIP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Driven Configuration:Half-Bridge
Channel Type:Synchronous
Number of Drivers:2
Gate Type:IGBT, N-Channel MOSFET
Voltage - Supply:10V ~ 16.6V
Logic Voltage - VIL, VIH:-
Current - Peak Output (Source, Sink):170mA, 270mA
Input Type:RC Input Circuit
High Side Voltage - Max (Bootstrap):600 V
Rise / Fall Time (Typ):-
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-Mini DIP
