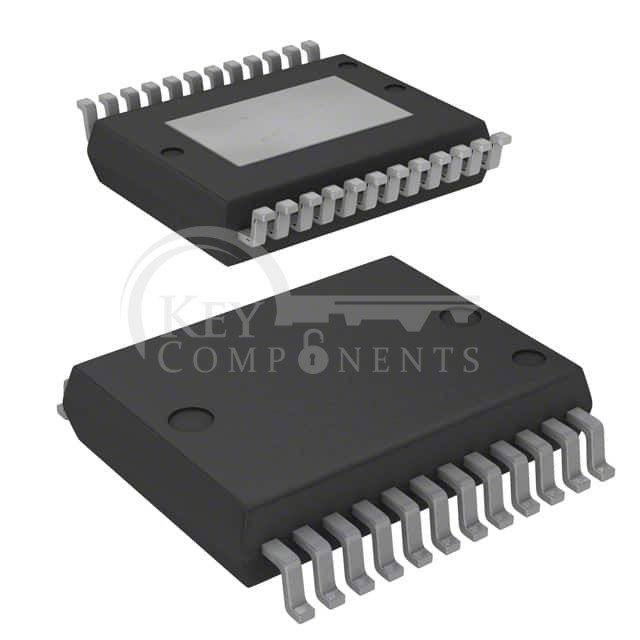

L9958XP

L9958XP

Manufacturer Part L9958XP
Manufacturer STMicroelectronics
Description IC MOTOR DRVR BIPOLAR 24POWERSSO
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Motor Type - Stepper:Bipolar
Motor Type - AC, DC:Brushed DC
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (2)
Interface:SPI
Technology:CMOS
Step Resolution:-
Applications:General Purpose
Current - Output:8.6A
Voltage - Supply:4.5V ~ 5.5V
Voltage - Load:4V ~ 28V
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:24-PowerBSOP (0.295", 7.50mm Width)
Supplier Device Package:PowerSSO-24
