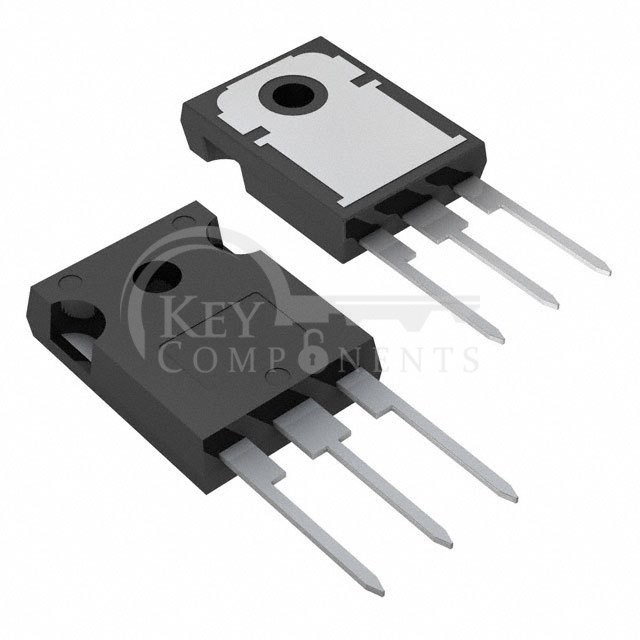

STGW28IH125DF

Manufacturer Part	STGW28IH125DF
Manufacturer	STMicroelectronics
Description	IGBT 1250V 60A 375W TO-247
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1250 V
Current - Collector (Ic) (Max):	60 A
Current - Collector Pulsed (Icm):	120 A
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 25A
Power - Max:	375 W
Switching Energy:	720µJ (off)
Input Type:	Standard
Gate Charge:	114 nC
Td (on/off) @ 25°C:	-/128ns
Test Condition:	600V, 25A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247
