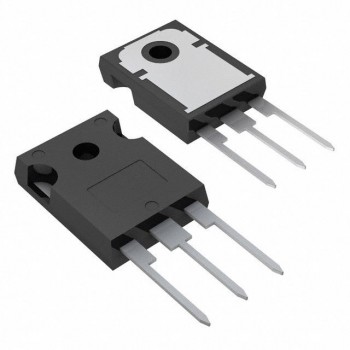

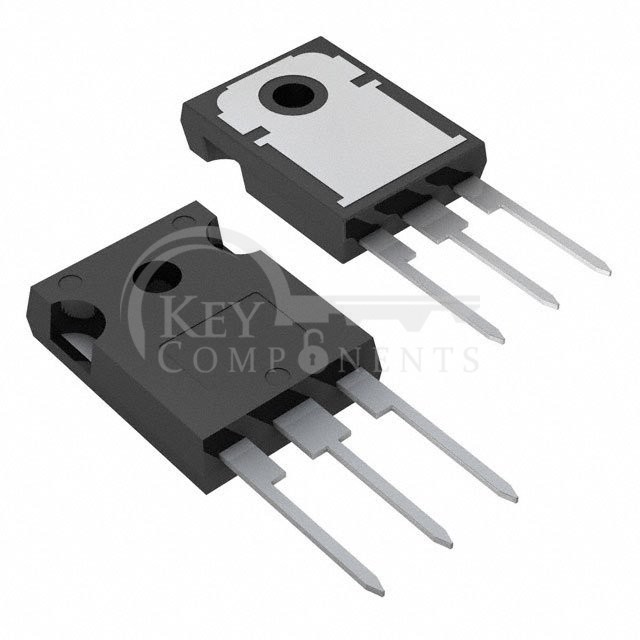

STGW40H60DLFB

Manufacturer Part	STGW40H60DLFB
Manufacturer	STMicroelectronics
Description	IGBT 600V 80A 283W TO-247
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	160 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 40A
Power - Max:	283 W
Switching Energy:	363µJ (off)
Input Type:	Standard
Gate Charge:	210 nC
Td (on/off) @ 25°C:	-/142ns
Test Condition:	400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247
