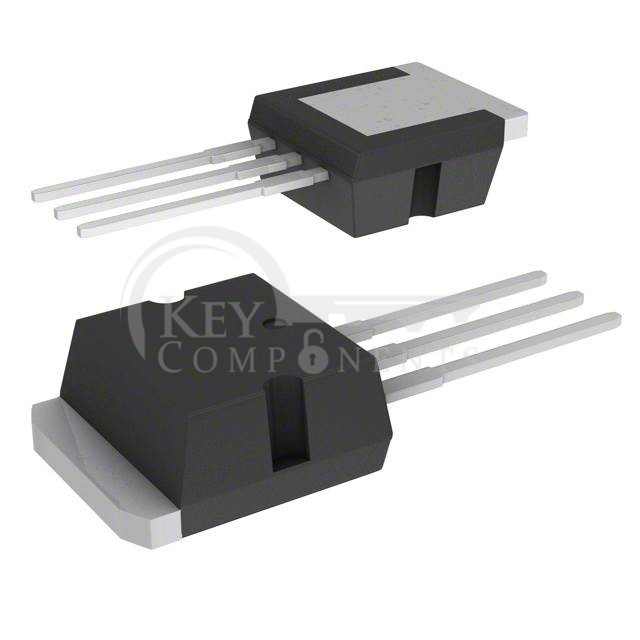

STPS40M100CR

Manufacturer Part	STPS40M100CR
Manufacturer	STMicroelectronics
Description	DIODE ARRAY SCHOTTKY 100V I2PAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io) (per Diode):	20A
Voltage - Forward (Vf) (Max) @ If:	780 mV @ 20 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	70 µA @ 100 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Through Hole
Package / Case:	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package:	I2PAK
