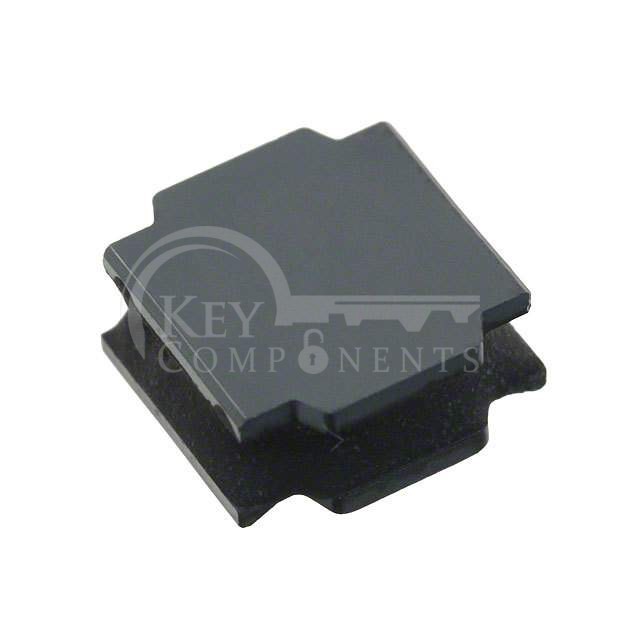

NRS8040T4R7NJGJV
| Manufacturer Part | NRS8040T4R7NJGJV |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 4.7UH 4.1A 23.4MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 4.7 µH |
| Tolerance: | ±30% |
| Current Rating (Amps): | 4.1 A |
| Current - Saturation (Isat): | 5.4A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 23.4mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 30MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max): | 0.165" (4.20mm) |
