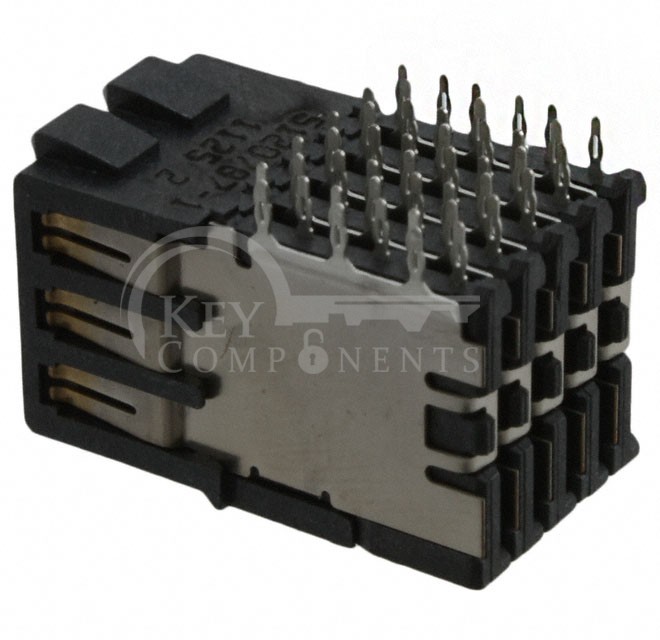

5120787-1
| Manufacturer Part | 5120787-1 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN RCPT DUAL BEAM 30POS PCB |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Connector Usage: | Backplane |
| Connector Type: | Receptacle, Female Sockets |
| Connector Style: | Dual Beam, Center |
| Number of Positions: | 30 |
| Number of Positions Loaded: | All |
| Pitch: | 0.098" (2.50mm) |
| Number of Rows: | 6 |
| Number of Columns: | 5 |
| Mounting Type: | Through Hole, Right Angle |
| Termination: | Press-Fit |
| Contact Layout, Typical: | - |
| Features: | - |
| Contact Finish: | Gold |
| Contact Finish Thickness: | 30.0µin (0.76µm) |
| Color: | - |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
