536098-5
| Manufacturer Part | 536098-5 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |

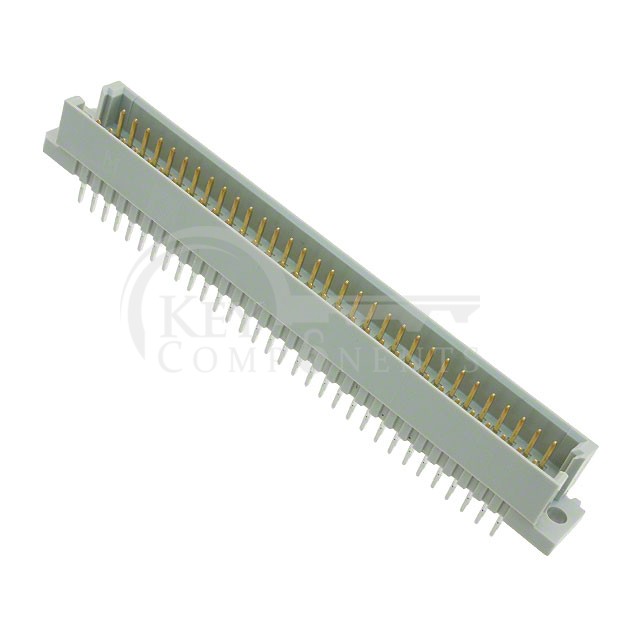

| Description | CONN DIN PLUG 96POS PCB GOLD |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Connector Type: | Plug, Male Pins |
| Number of Positions: | 96 |
| Number of Positions Loaded: | 64 |
| Pitch: | 0.100" (2.54mm) |
| Number of Rows: | 3 |
| Style: | R |
| Level, Class: | 2 |
| Mounting Type: | Through Hole |
| Termination: | Press-Fit |
| Features: | - |
| Contact Finish: | Gold |
| Contact Finish Thickness: | - |
