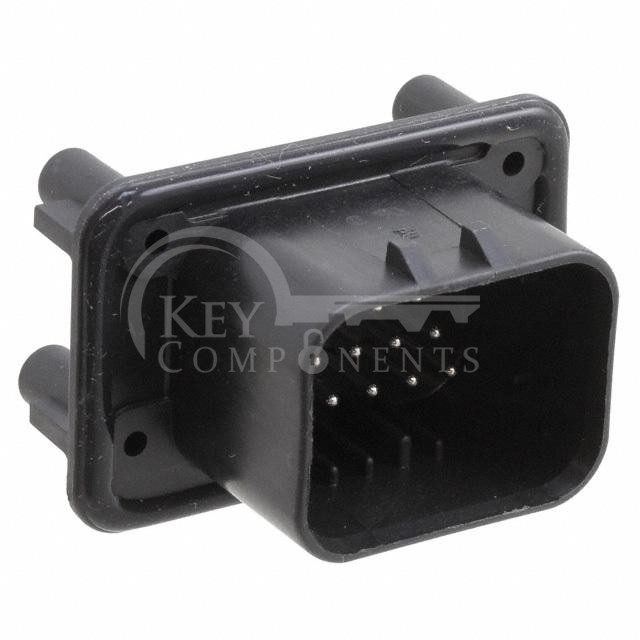

776262-1

Manufacturer Part	776262-1
Manufacturer	TE Connectivity AMP Connectors
Description	CONN HEADER VERT 14POS 4MM
Category	Connectors, Interconnects
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.157" (4.00mm)
Number of Positions:	14
Number of Rows:	3
Row Spacing - Mating:	0.157" (4.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Panel Mount, Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	-
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Mounting Flange, Sealed
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	250VAC
