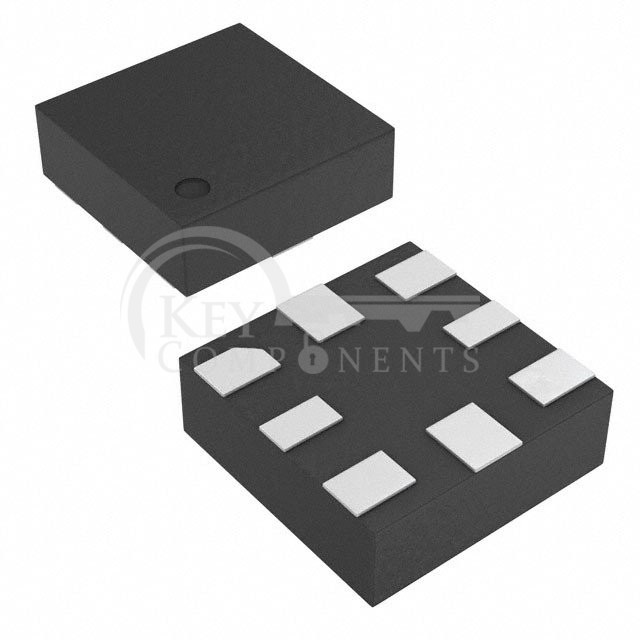

Manufacturer Part | ADS7054IRUGR |
---|---|
Manufacturer | Texas Instruments |
Description | IC ADC 14BIT SAR 8X2QFN |
Category | Integrated Circuits (ICs) |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Number of Bits: | 14 |
Sampling Rate (Per Second): | 1M |
Number of Inputs: | 1 |
Input Type: | Differential |
Data Interface: | SPI |
Configuration: | S/H-ADC |
Ratio - S/H:ADC: | 1:1 |
Number of A/D Converters: | 1 |
Architecture: | SAR |
Reference Type: | Supply |
Voltage - Supply, Analog: | 1.65V ~ 3.6V |
Voltage - Supply, Digital: | 1.65V ~ 3.6V |
Features: | - |
Operating Temperature: | -40°C ~ 125°C |
Package / Case: | 8-XFQFN |
Supplier Device Package: | 8-X2QFN (1.5x1.5) |
Mounting Type: | Surface Mount |
Shipping Type | Ship Fee | Lead Time |
DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment method | Hand Fee |
Telegraphic Transfer | charge US$30.00 banking fee. |
Paypal | charge 4.0% service fee. |
Credit Card | charge 4% service fee. |
Western Union | charge US$0.00 banking fee. |
Money Gram | charge US$0.00 banking fee. |
