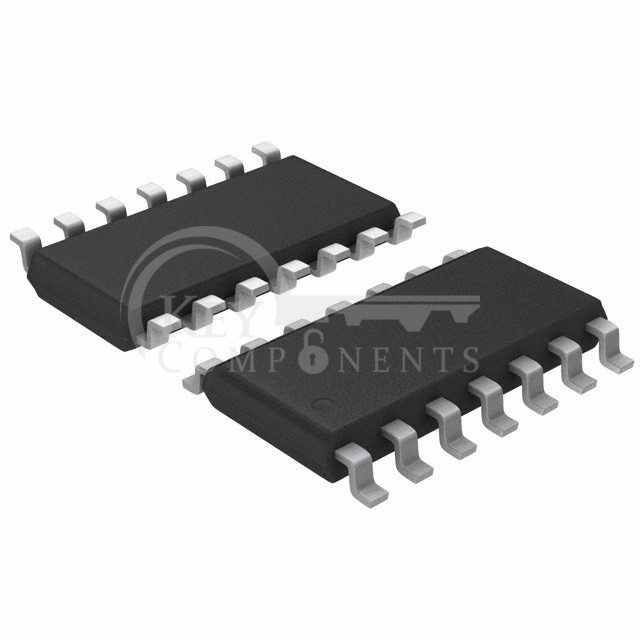

CD4077BM
| Manufacturer Part | CD4077BM |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC GATE XNOR 4CH 2-INP 14SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Logic Type: | XNOR (Exclusive NOR) |
| Number of Circuits: | 4 |
| Number of Inputs: | 2 |
| Features: | - |
| Voltage - Supply: | 3V ~ 18V |
| Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | 3.4mA, 3.4mA |
| Logic Level - Low: | 1.5V ~ 4V |
| Logic Level - High: | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL: | 100ns @ 15V, 50pF |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 14-SOIC |
| Package / Case: | 14-SOIC (0.154", 3.90mm Width) |
