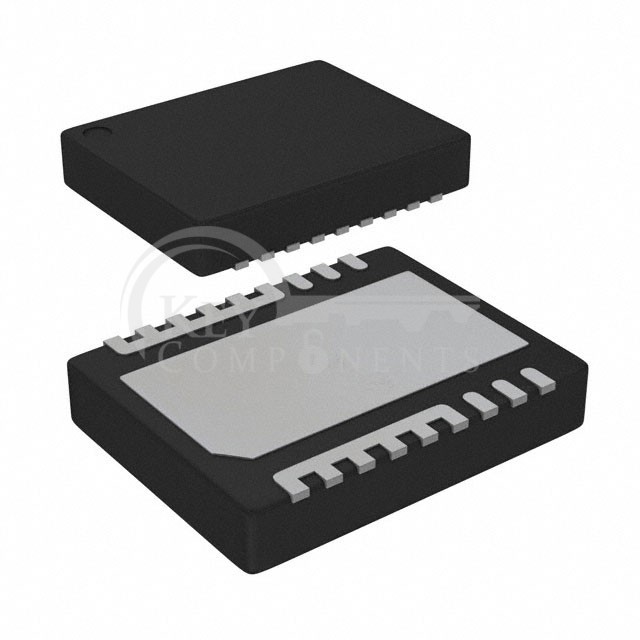

CSD97395Q4MT
| Manufacturer Part | CSD97395Q4MT |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC SYNC BUCK NEXFET 8VSON |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Half Bridge |
| Applications: | Synchronous Buck Converters |
| Interface: | PWM |
| Load Type: | Inductive |
| Technology: | Power MOSFET |
| Rds On (Typ): | - |
| Current - Output / Channel: | 25A |
| Current - Peak Output: | 60A |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Voltage - Load: | 4.5V ~ 24V |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Features: | Bootstrap Circuit |
| Fault Protection: | Shoot-Through, UVLO |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-PowerVFDFN |
| Supplier Device Package: | 8-VSON (3.5x4.5) |
