DRV8300DRGER

DRV8300DRGER

Manufacturer Part DRV8300DRGER
Manufacturer Texas Instruments
Description 100-V MAX SIMPLE 3-PHASE GATE DR
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Driven Configuration:High-Side and Low-Side
Channel Type:3-Phase
Number of Drivers:3
Gate Type:N-Channel MOSFET
Voltage - Supply:5V ~ 20V
Logic Voltage - VIL, VIH:0.8V, 2V
Current - Peak Output (Source, Sink):750mA, 1.5A
Input Type:Non-Inverting
High Side Voltage - Max (Bootstrap):105 V
Rise / Fall Time (Typ):12ns, 12ns
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount

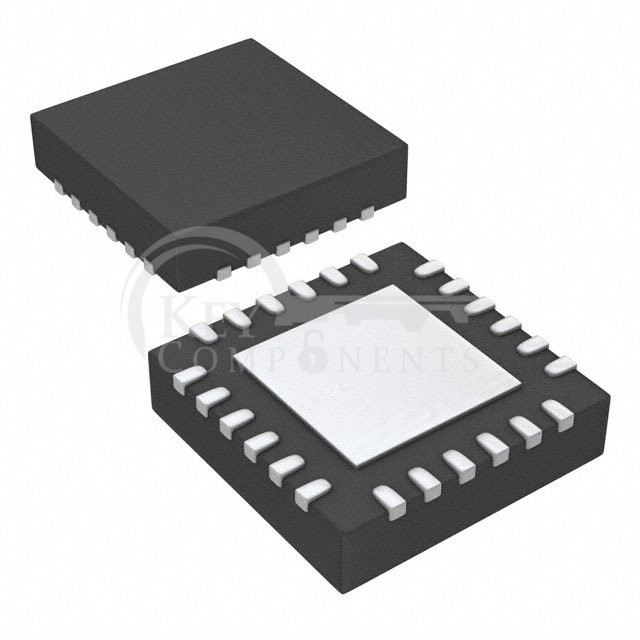

Package / Case:24-VFQFN Exposed Pad
Supplier Device Package:24-VQFN (4x4)
