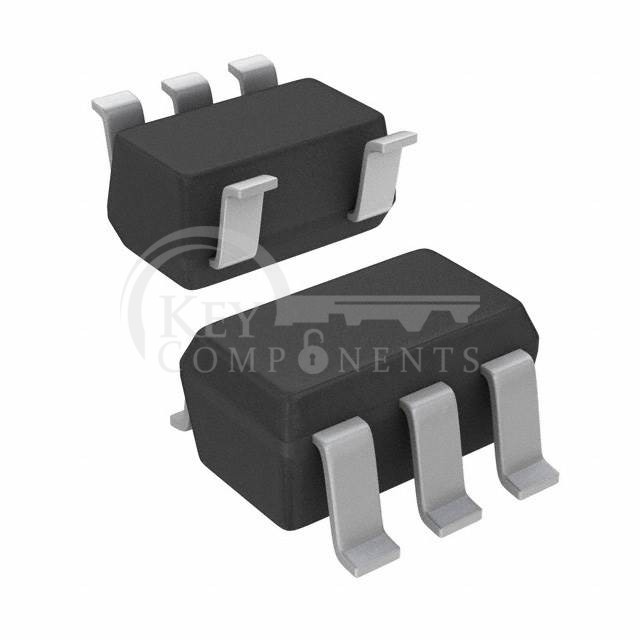

INA180B2QDBVRQ1

INA180B2QDBVRQ1

Manufacturer Part INA180B2QDBVRQ1
Manufacturer Texas Instruments
Description IC CURR SENSE 1 CIRCUIT SOT23-5
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Amplifier Type:Current Sense
Number of Circuits:1
Output Type:Rail-to-Rail
Slew Rate:2V/µs
Gain Bandwidth Product:-
-3db Bandwidth:210 kHz
Current - Input Bias:80 µA
Voltage - Input Offset:100 µV
Current - Supply:197µA
Current - Output / Channel:-
Voltage - Supply Span (Min):2.7 V
Voltage - Supply Span (Max):5.5 V
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:SOT-23-5
