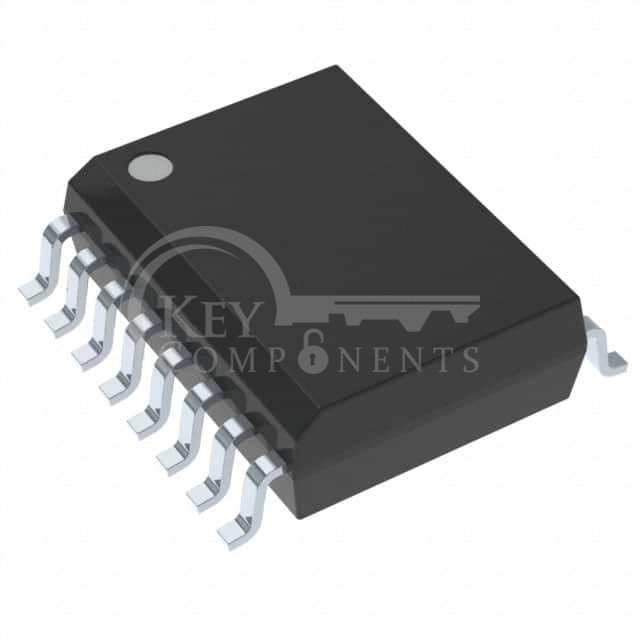

ISO5452DWR

ISO5452DWR

Manufacturer Part ISO5452DWR
Manufacturer Texas Instruments
Description DGTL ISO 5.7KV GATE DRVR 16SOIC
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:5700Vrms
Common Mode Transient Immunity (Min):50kV/µs
Propagation Delay tpLH / tpHL (Max):110ns, 110ns
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):18ns, 20ns
Current - Output High, Low:1.5A, 3.4A
Current - Peak Output:2.7A, 5.5A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
Approval Agency:CQC, CSA, UR, VDE
