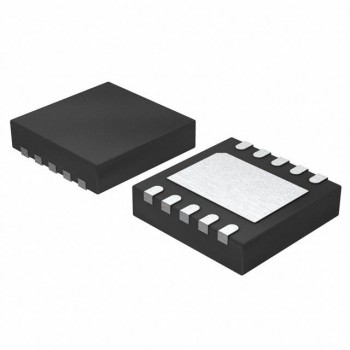

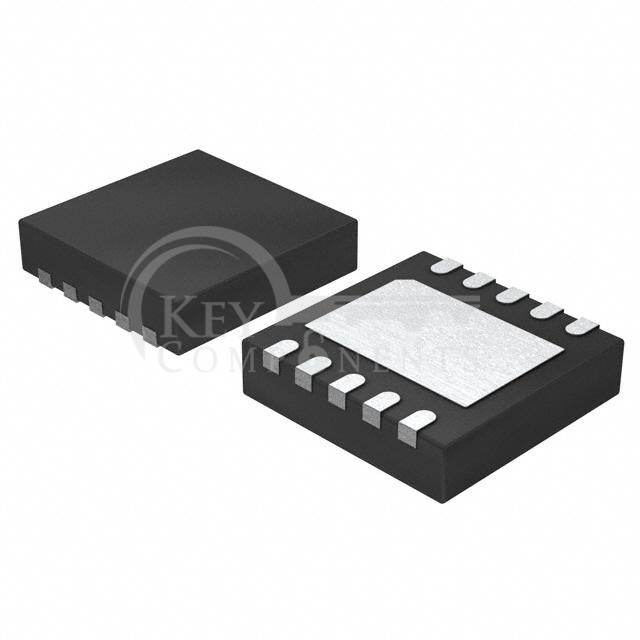

LM2793LDX
| Manufacturer Part | LM2793LDX |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC LED DRV RGLTR PWM 16MA 10WSON |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Discontinued at Digi-Key |
| Type: | DC DC Regulator |
| Topology: | Switched Capacitor (Charge Pump) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 2 |
| Voltage - Supply (Min): | 2.7V |
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | - |
| Current - Output / Channel: | 16mA |
| Frequency: | 500kHz |
| Dimming: | PWM |
| Applications: | Backlight |
| Operating Temperature: | -30°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-WFDFN Exposed Pad |
| Supplier Device Package: | 10-WSON (3x3) |
