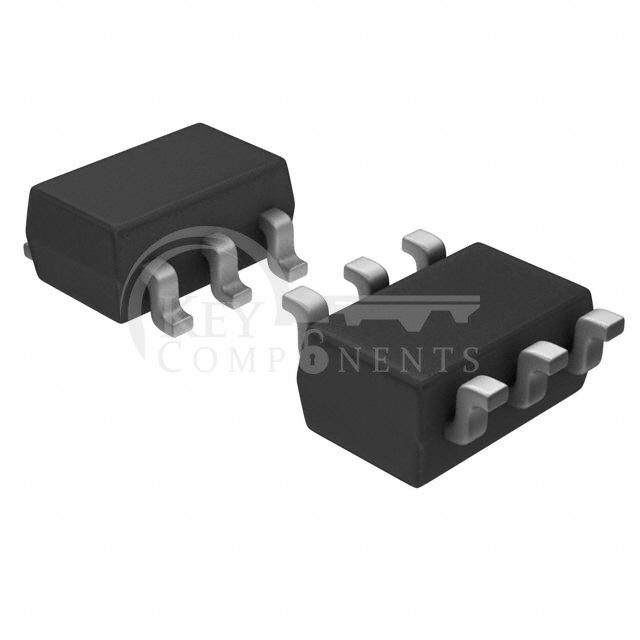

SN6505BDBVR
| Manufacturer Part | SN6505BDBVR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC TRANSFORMER DRIVER 6SOT-23 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Applications: | Transformer Driver |
| Current - Supply: | 1.56mA |
| Voltage - Supply: | 2.25V ~ 5.5V |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-23-6 |
| Supplier Device Package: | SOT-23-6 |
