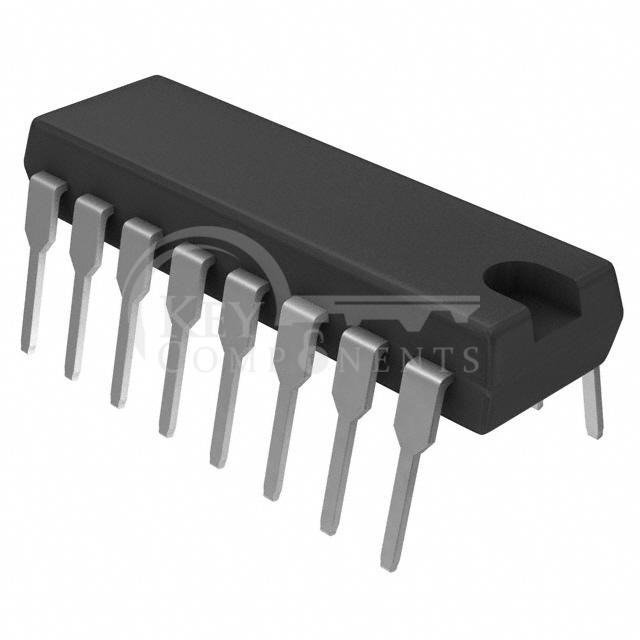

TL1454ACN

Type	Description
Product Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Buck, Boost, Flyback
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	3.6V ~ 20V
Frequency - Switching:	50kHz ~ 2MHz
Duty Cycle (Max):	100%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Dead Time Control, Frequency Control
Operating Temperature:	-20°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	16-DIP (0.300", 7.62mm)
Supplier Device Package:	16-PDIP
