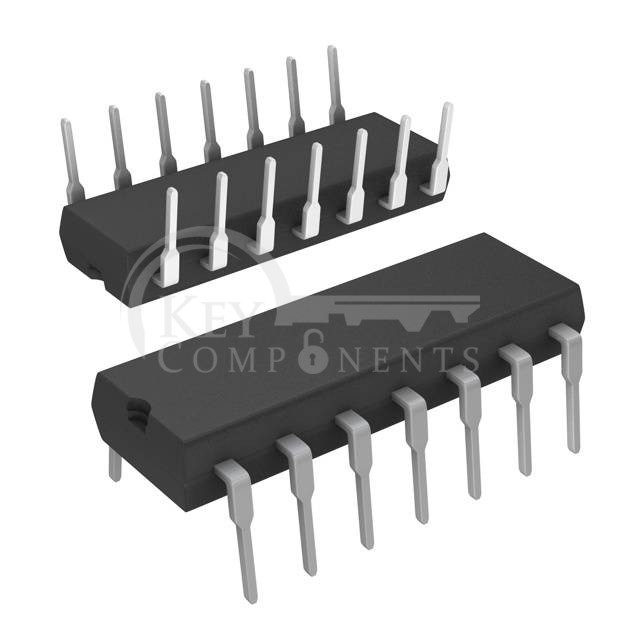

TLC339CN
| Manufacturer Part | TLC339CN |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC COMPARATOR QUAD MCPWR 14-DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | General Purpose |
| Number of Elements: | 4 |
| Output Type: | CMOS, Open-Drain |
| Voltage - Supply, Single/Dual (±): | 3V ~ 16V |
| Voltage - Input Offset (Max): | 5mV @ 10V |
| Current - Input Bias (Max): | 5pA @ 5V |
| Current - Output (Typ): | 20mA |
| Current - Quiescent (Max): | 100µA |
| CMRR, PSRR (Typ): | 84dB CMRR |
| Propagation Delay (Max): | 4.5µs |
| Hysteresis: | - |
| Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 14-DIP (0.300", 7.62mm) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | 14-PDIP |
