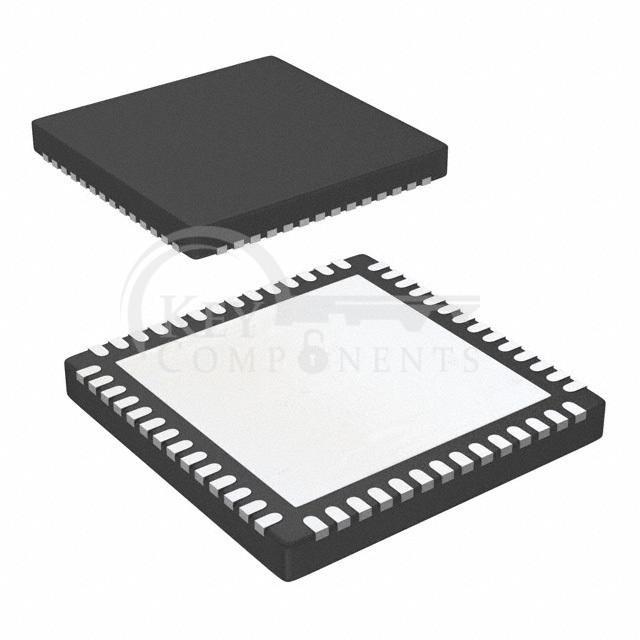

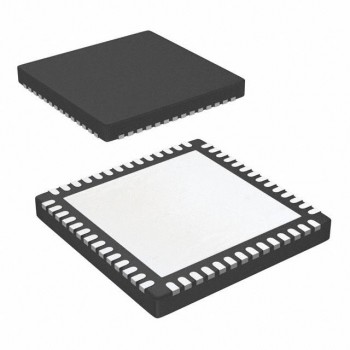

TLC5958RTQR
| Manufacturer Part | TLC5958RTQR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC LED DRIVER LINEAR 25MA 56QFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Linear |
| Topology: | Shift Register |
| Internal Switch(s): | Yes |
| Number of Outputs: | 48 |
| Voltage - Supply (Min): | 3V |
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | 10V |
| Current - Output / Channel: | 25mA |
| Frequency: | - |
| Dimming: | - |
| Applications: | Signage |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 56-VFQFN Exposed Pad |
| Supplier Device Package: | 56-QFN (8x8) |
