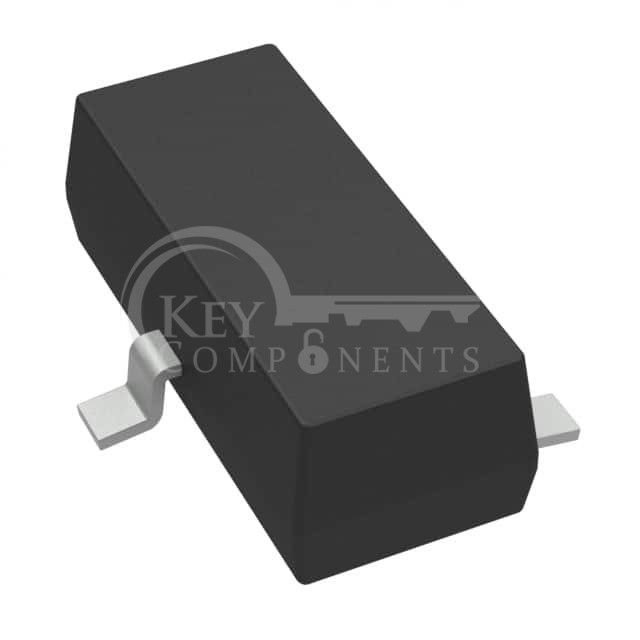

TLVH431BCDBZR

TLVH431BCDBZR

Manufacturer Part TLVH431BCDBZR
Manufacturer Texas Instruments
Description IC VREF SHUNT ADJ 0.5% SOT23-3
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Reference Type:Shunt
Output Type:Adjustable
Voltage - Output (Min/Fixed):1.24V
Voltage - Output (Max):18 V
Current - Output:70 mA
Tolerance:±0.5%
Temperature Coefficient:-
Noise - 0.1Hz to 10Hz:-
Noise - 10Hz to 10kHz:-
Voltage - Input:-
Current - Supply:-
Current - Cathode:100 µA
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23-3
