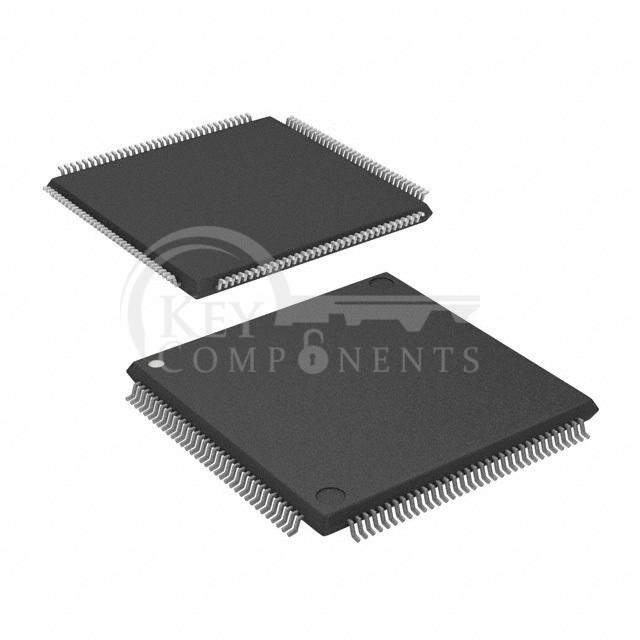

TM4C123BH6PGEIR
| Manufacturer Part | TM4C123BH6PGEIR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC MCU 32BIT 256KB FLASH 144LQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | ARM® Cortex®-M4F |
| Core Size: | 32-Bit Single-Core |
| Speed: | 80MHz |
| Connectivity: | CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT |
| Number of I/O: | 105 |
| Program Memory Size: | 256KB (256K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 2K x 8 |
| RAM Size: | 32K x 8 |
| Voltage - Supply (Vcc/Vdd): | 1.08V ~ 3.63V |
| Data Converters: | A/D 24x12b |
| Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 144-LQFP |
| Supplier Device Package: | 144-LQFP (20x20) |
