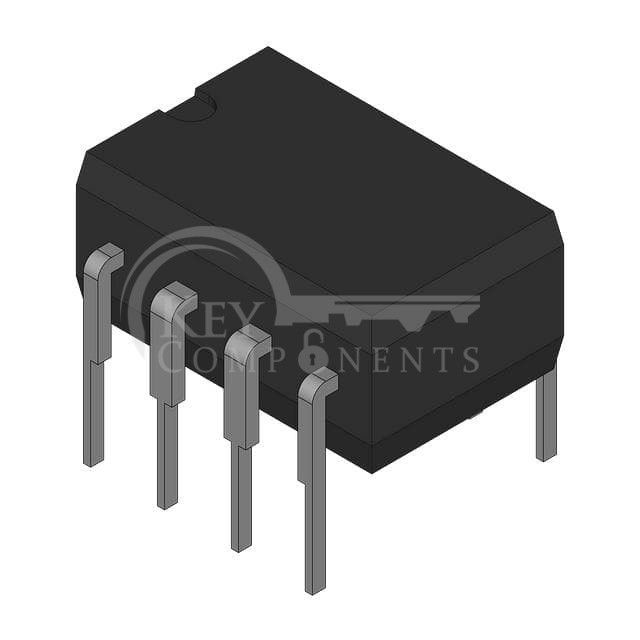

UC3715N

Type	Description
Product Status:	Obsolete
Driven Configuration:	Low-Side
Channel Type:	Synchronous
Number of Drivers:	2
Gate Type:	N-Channel, P-Channel MOSFET
Voltage - Supply:	7V ~ 20V
Logic Voltage - VIL, VIH:	0.8V, 2V
Current - Peak Output (Source, Sink):	500mA, 1A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	-
Rise / Fall Time (Typ):	30ns, 25ns
Operating Temperature:	0°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-PDIP
