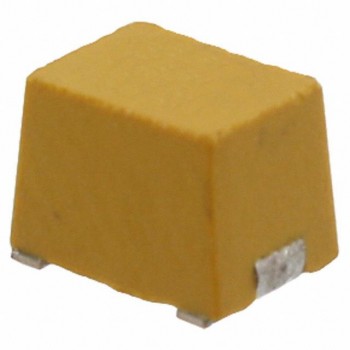

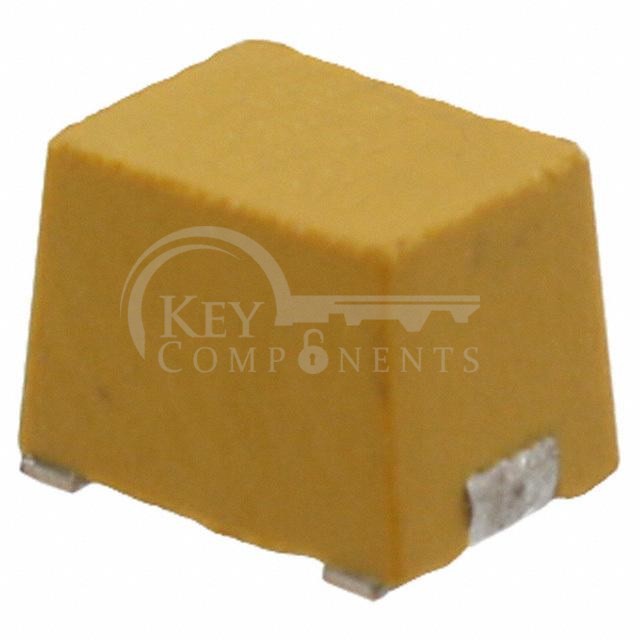

IMC1812ER390K
| Manufacturer Part | IMC1812ER390K |
|---|---|
| Manufacturer | Vishay Dale |
| Description | FIXED IND 39UH 150MA 4.5 OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Iron Powder |
| Inductance: | 39 µH |
| Tolerance: | ±10% |
| Current Rating (Amps): | 150 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 4.5Ohm Max |
| Q @ Freq: | 50 @ 2.52MHz |
| Frequency - Self Resonant: | 11MHz |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 2.52 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1812 (4532 Metric) |
| Supplier Device Package: | 1812 |
| Size / Dimension: | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max): | 0.134" (3.40mm) |
