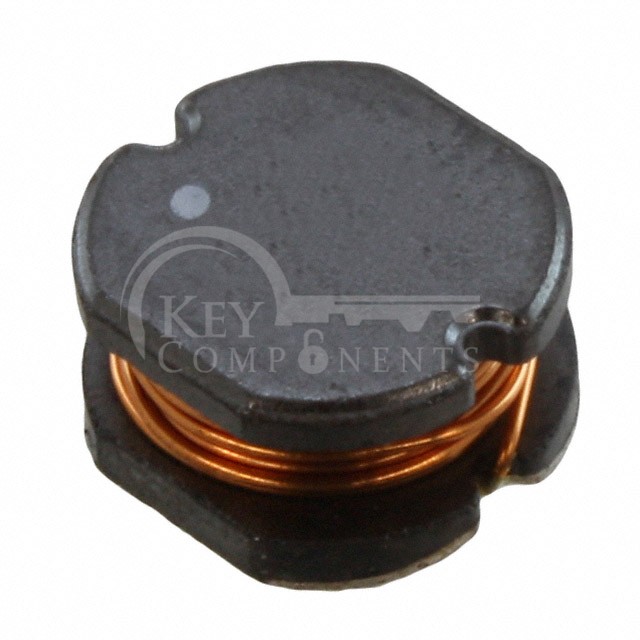

744776115
| Manufacturer Part | 744776115 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 15UH 2.47A 80 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 15 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 2.47 A |
| Current - Saturation (Isat): | 2.88A |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 80mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 20MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 10 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.394" L x 0.354" W (10.00mm x 9.00mm) |
| Height - Seated (Max): | 0.232" (5.90mm) |
