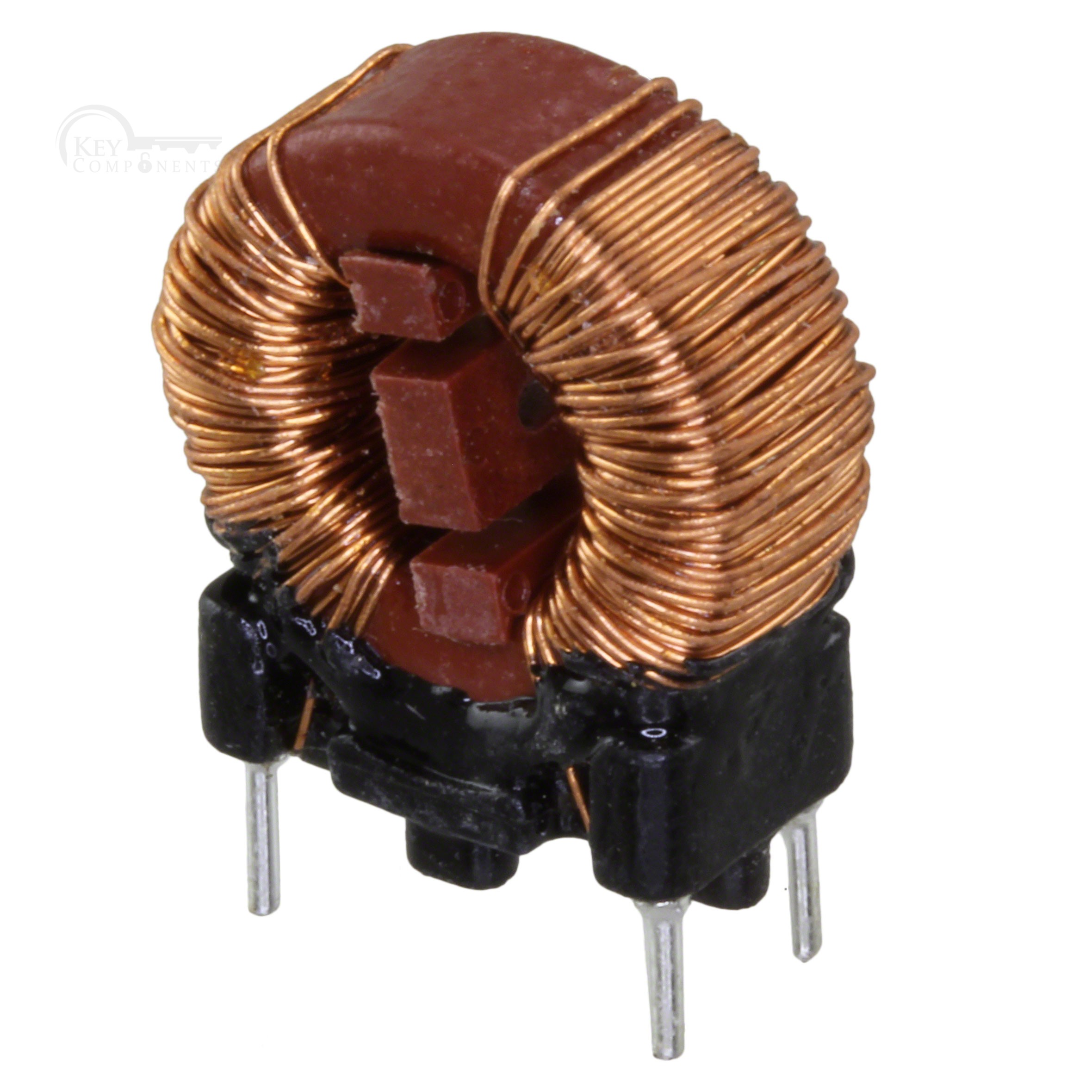

744821120
| Manufacturer Part | 744821120 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | CMC 20MH 500MA 2LN TH |
| Category | Filters |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Filter Type: | Power Line |
| Number of Lines: | 2 |
| Impedance @ Frequency: | - |
| Inductance @ Frequency: | 20 mH @ 10 kHz |
| Current Rating (Max): | 500mA |
| DC Resistance (DCR) (Max): | 1Ohm |
| Voltage Rating - DC: | - |
| Voltage Rating - AC: | 250V |
| Operating Temperature: | -40°C ~ 125°C |
| Ratings: | - |
| Approval Agency: | - |
| Features: | - |
| Mounting Type: | Through Hole |
| Size / Dimension: | 0.591" L x 0.295" W (15.00mm x 7.50mm) |
| Height (Max): | 0.689" (17.50mm) |
| Package / Case: | Vertical, 4 PC Pin |
