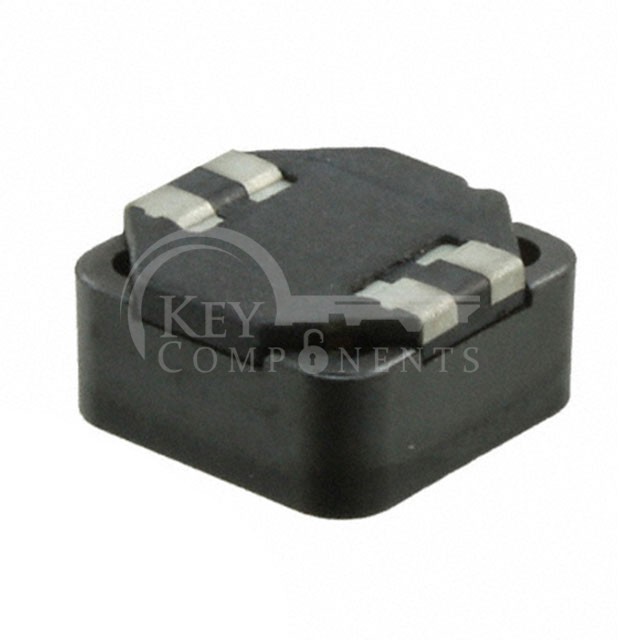

744871470

Type	Description
Product Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	47 µH
Inductance - Connected In Series:	188 µH
Tolerance:	±20%
Current Rating - Parallel:	1.1 A
Current Rating - Series:	550 mA
Current Saturation - Parallel:	2.4 A
Current Saturation - Series:	1.2 A
DC Resistance (DCR) - Parallel:	180mOhm Max
DC Resistance (DCR) - Series:	-
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.256" (6.50mm)

We provide 90 days warranty;
The Pre-Shipment Inspection (PSI) will be applied;
If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Taxes & VAT will not be included;
