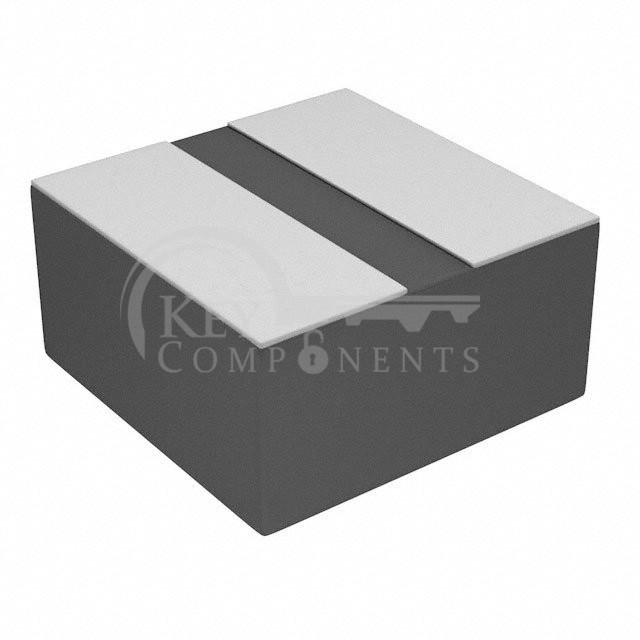

78438335022
| Manufacturer Part | 78438335022 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 2.2UH 1.8A 108MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Molded |
| Material - Core: | Iron Alloy |
| Inductance: | 2.2 µH |
| Tolerance: | ±30% |
| Current Rating (Amps): | 1.8 A |
| Current - Saturation (Isat): | 3.5A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 108mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 45MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1212 (3030 Metric) |
| Supplier Device Package: | 3015 |
| Size / Dimension: | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max): | 0.059" (1.50mm) |
