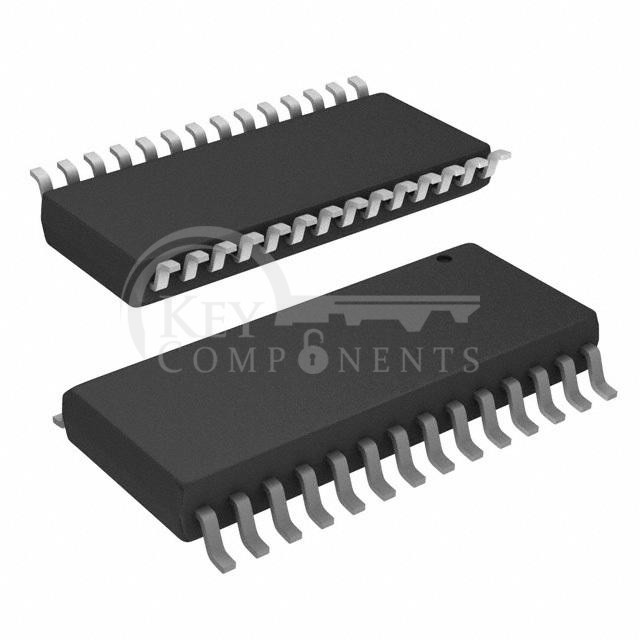

Z8F082ASJ020SC
| Manufacturer Part | Z8F082ASJ020SC |
|---|---|
| Manufacturer | Zilog |
| Description | IC MCU 8BIT 8KB FLASH 28SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Core Processor: | eZ8 |
| Core Size: | 8-Bit |
| Speed: | 20MHz |
| Connectivity: | IrDA, UART/USART |
| Peripherals: | Brown-out Detect/Reset, LED, LVD, POR, PWM, Temp Sensor, WDT |
| Number of I/O: | 23 |
| Program Memory Size: | 8KB (8K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | - |
| RAM Size: | 1K x 8 |
| Voltage - Supply (Vcc/Vdd): | 2.7V ~ 3.6V |
| Data Converters: | A/D 8x10b |
| Oscillator Type: | Internal |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | - |
