AO6810

AO6810

Manufacturer Part AO6810
Manufacturer Alpha & Omega Semiconductor Inc.
Description MOSFET 2N-CH 30V 3.5A 6TSOP
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
FET Type:2 N-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):30V
Current - Continuous Drain (Id) @ 25°C:3.5A
Rds On (Max) @ Id, Vgs:50mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:210pF @ 15V
Power - Max:1.15W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount

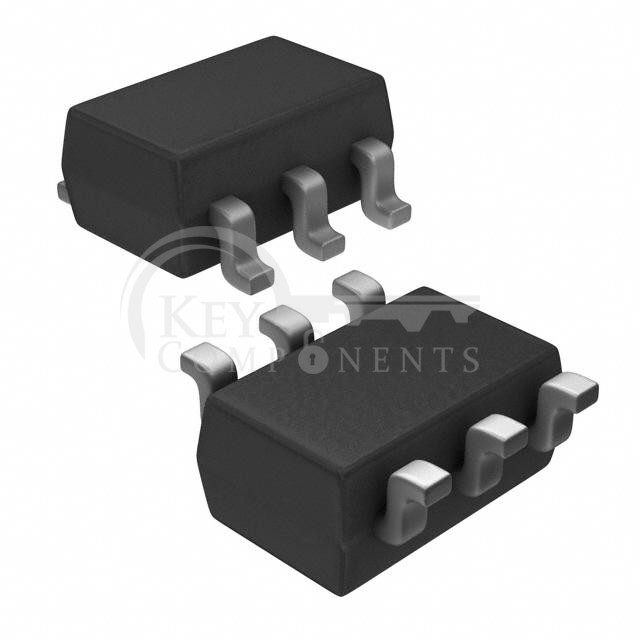

Package / Case:SC-74, SOT-457
Supplier Device Package:6-TSOP
