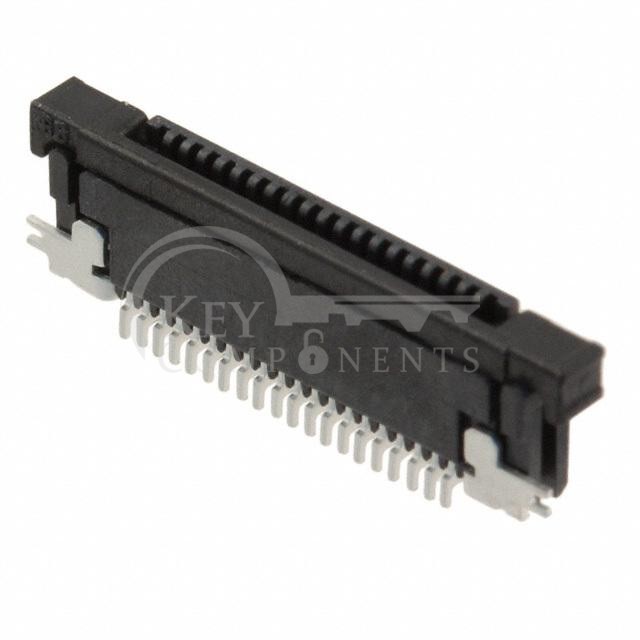

SFV20R-2STE1HLF

Type	Description
Product Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	20
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm, 0.33mm
Height Above Board:	0.071" (1.80mm)
Locking Feature:	Slide Lock
Cable End Type:	Notched
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
