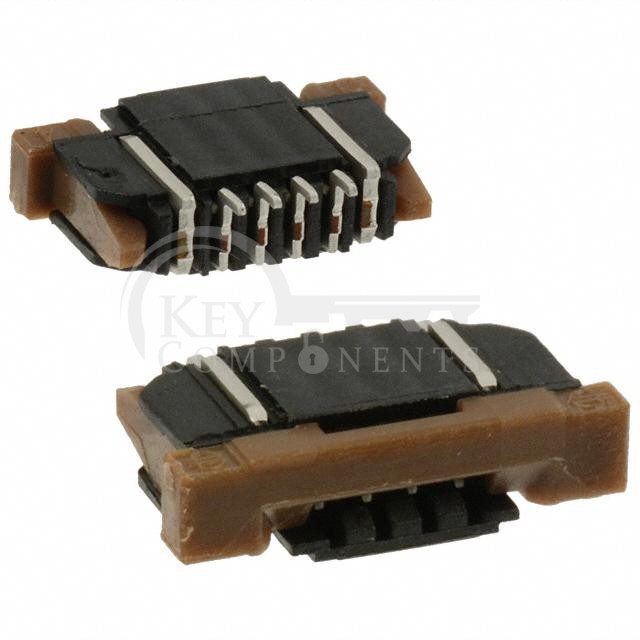

SFW4R-3STE1LF

Type	Description
Product Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	4
Pitch:	0.039" (1.00mm)
Termination:	Kinked Pin
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.106" (2.70mm)
Locking Feature:	-
Cable End Type:	Straight or Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	100V
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
