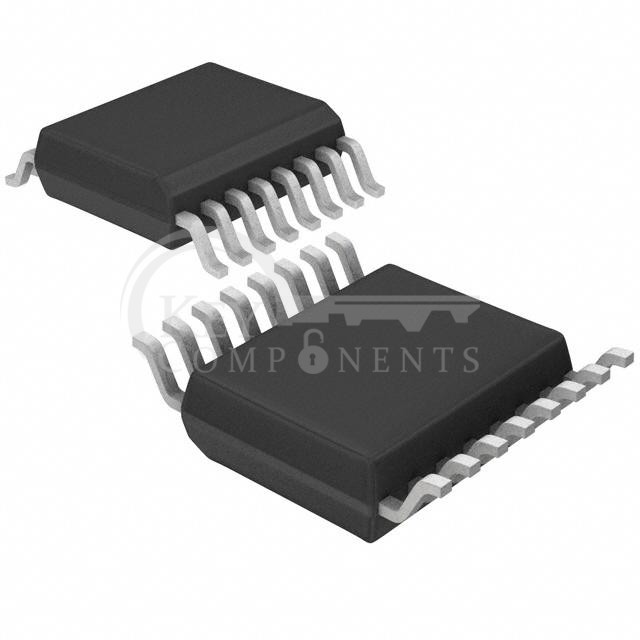

Manufacturer Part | ACPL-331J-500E |
---|---|
Manufacturer | Broadcom Limited |
Description | OPTOISO 5KV 1CH GATE DRIVER 16SO |
Category | Isolators |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Technology: | Optical Coupling |
Number of Channels: | 1 |
Voltage - Isolation: | 5000Vrms |
Common Mode Transient Immunity (Min): | 15kV/µs |
Propagation Delay tpLH / tpHL (Max): | 250ns, 250ns |
Pulse Width Distortion (Max): | 100ns |
Rise / Fall Time (Typ): | 50ns, 50ns |
Current - Output High, Low: | 1A, 1A |
Current - Peak Output: | 1.5A |
Voltage - Forward (Vf) (Typ): | 1.6V |
Current - DC Forward (If) (Max): | 25 mA |
Voltage - Output Supply: | 15V ~ 30V |
Operating Temperature: | -40°C ~ 105°C |
Mounting Type: | Surface Mount |
Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
Supplier Device Package: | 16-SO |
Approval Agency: | CSA, IEC/EN/DIN, UR |
