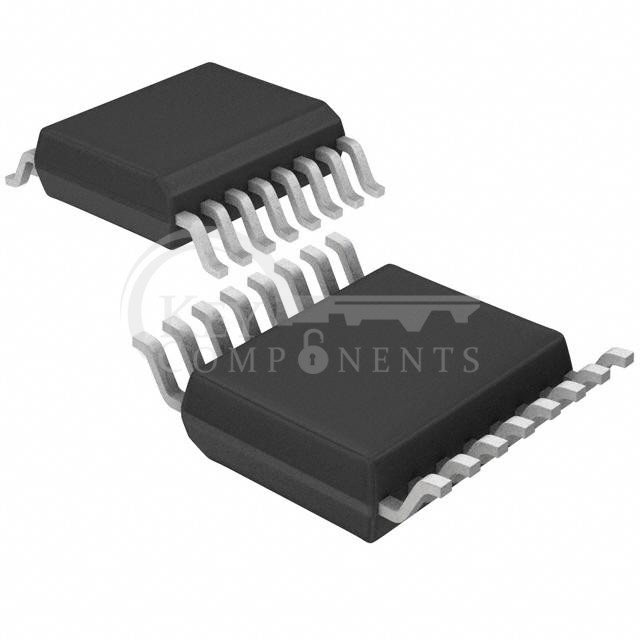

ACPL-332J-500E

Type	Description
Product Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Propagation Delay tpLH / tpHL (Max):	250ns, 250ns
Pulse Width Distortion (Max):	100ns
Rise / Fall Time (Typ):	50ns, 50ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.6V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SO
Approval Agency:	CSA, IEC/EN/DIN, UR

We provide 90 days warranty;
The Pre-Shipment Inspection (PSI) will be applied;
If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Taxes & VAT will not be included;
