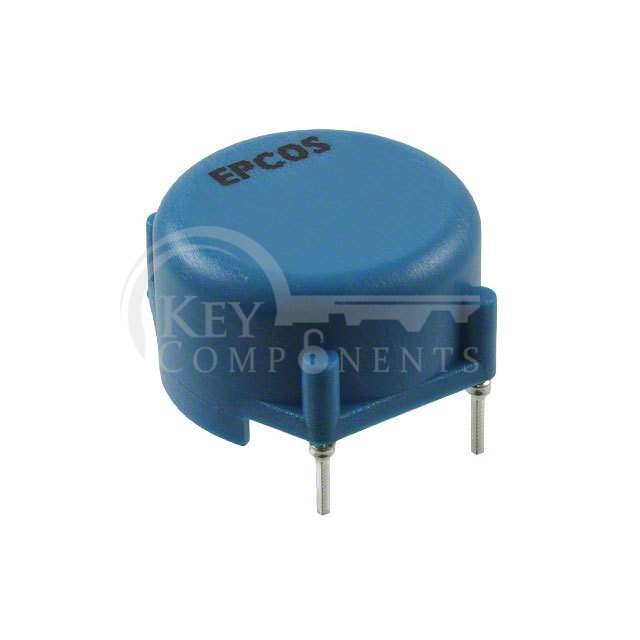

B82722A2202N001
| Manufacturer Part | B82722A2202N001 |
|---|---|
| Manufacturer | EPCOS - TDK Electronics |
| Description | CMC 2.2MH 2A 2LN TH |
| Category | Filters |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Filter Type: | Power Line |
| Number of Lines: | 2 |
| Impedance @ Frequency: | - |
| Inductance @ Frequency: | 2.2 mH @ 10 kHz |
| Current Rating (Max): | 2A |
| DC Resistance (DCR) (Max): | 130mOhm (Typ) |
| Voltage Rating - DC: | - |
| Voltage Rating - AC: | 250V |
| Operating Temperature: | -40°C ~ 125°C |
| Ratings: | - |
| Approval Agency: | ENEC, UR, VDE |
| Features: | - |
| Mounting Type: | Through Hole |
| Size / Dimension: | 0.894" L x 0.878" W (22.70mm x 22.30mm) |
| Height (Max): | 0.524" (13.30mm) |
| Package / Case: | Horizontal, 4 PC Pin |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
