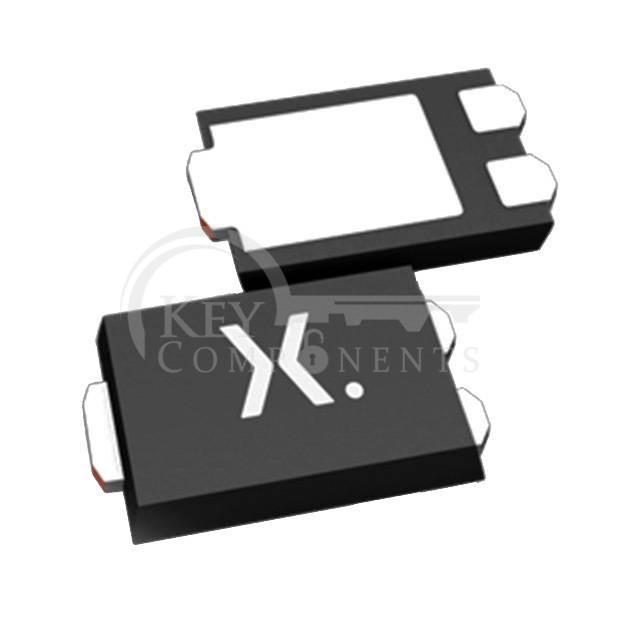

PMEG045V100EPDZ

PMEG045V100EPDZ

Manufacturer Part PMEG045V100EPDZ
Manufacturer Nexperia USA Inc.
Description DIODE SCHOTTKY 45V 10A CFP15
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):45 V
Current - Average Rectified (Io):10A
Voltage - Forward (Vf) (Max) @ If:490 mV @ 10 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):17 ns
Current - Reverse Leakage @ Vr:50 µA @ 10 V
Capacitance @ Vr, F:1190pF @ 1V, 1MHz
Mounting Type:Surface Mount
Package / Case:TO-277, 3-PowerDFN
Supplier Device Package:CFP15
Operating Temperature - Junction:-55°C ~ 175°C
