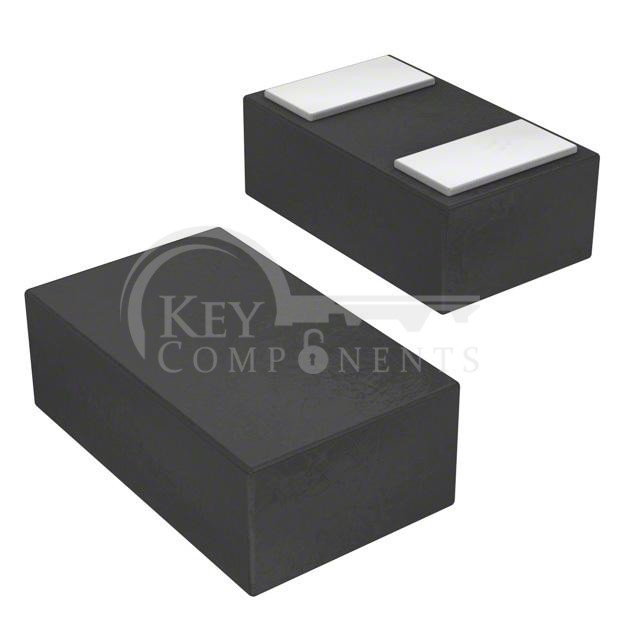

PMEG3010AESBYL

PMEG3010AESBYL

Manufacturer Part PMEG3010AESBYL
Manufacturer Nexperia USA Inc.
Description DIODE SCHOTTKY 30V 1A SOD993
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):1A
Voltage - Forward (Vf) (Max) @ If:480 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):3.5 ns
Current - Reverse Leakage @ Vr:255 µA @ 20 V
Capacitance @ Vr, F:86pF @ 1V, 1MHz
Mounting Type:Surface Mount
Package / Case:2-XDFN
Supplier Device Package:DSN1006-2
Operating Temperature - Junction:150°C (Max)
